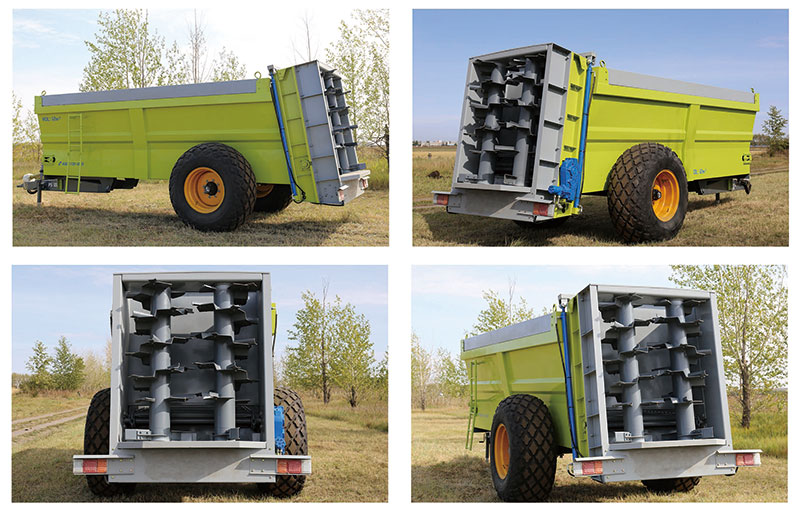

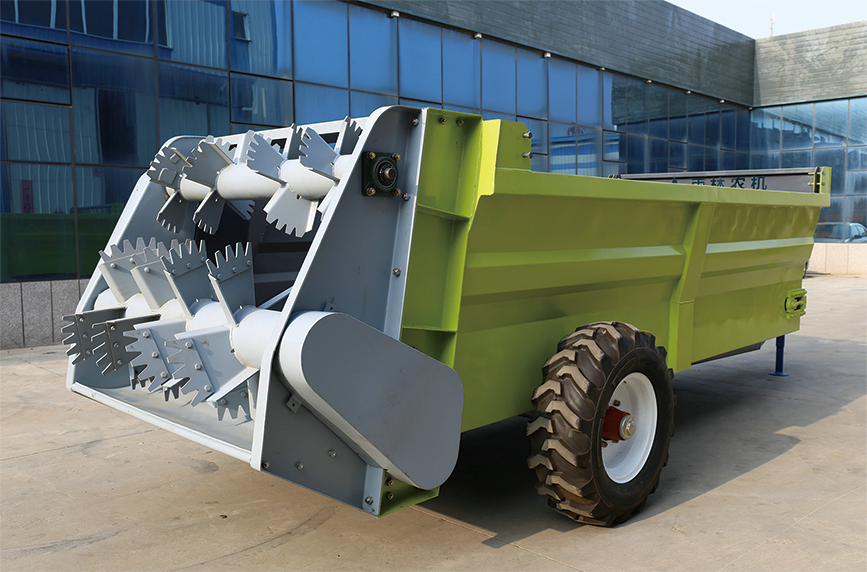

Solid organic fertilizer spreader

SOLID ORGANIC FERTILIZER SPREADER

Principle:

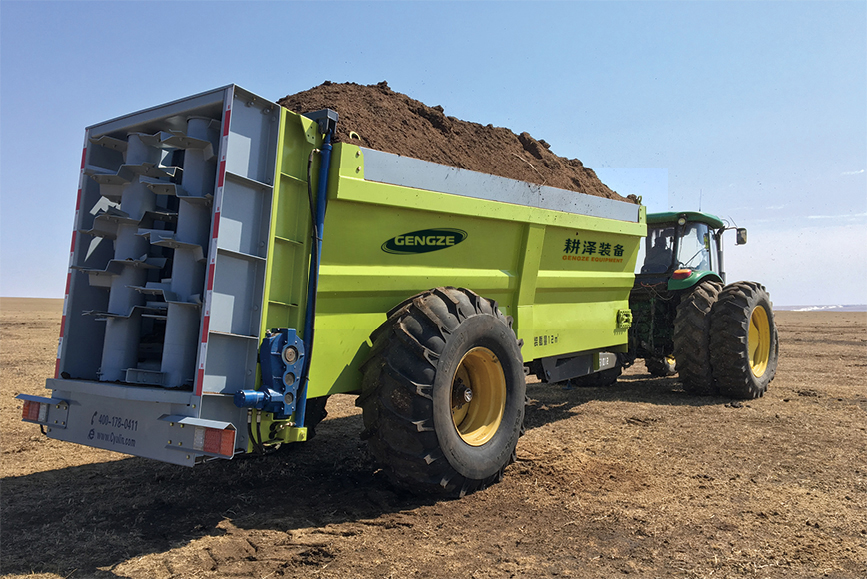

Solid organic fertilizer spreader driven by PTO is a new type machinery tool, which can return the barnyard manure (including pile and compost) by fermentation to the field. This tool combined with a tractor, which driven inside chain automatically, transfers the fertilizer backward. The fertilizer is being crushed and distributed symmetrically by rotating propeller with high speed. So fertilizer efficiency will be enhanced , labor tension will reduced and soil structure will be improved.


Advantage:

Good mobility, sample structure. Easy operation and high efficiency

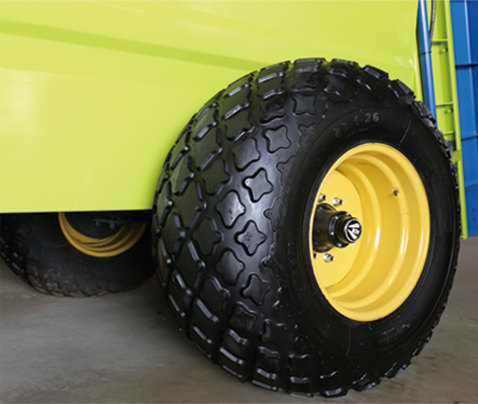

Tire:Adopted 23.1-26 tire, simple structure ,easy maintenance and durability.

Axel:adopted ADEEL, originated from Italy, much safer; much more durable, less main.

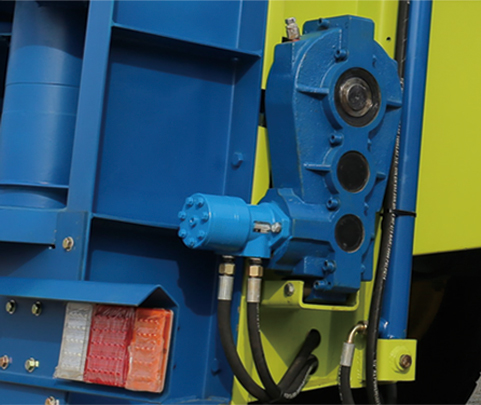

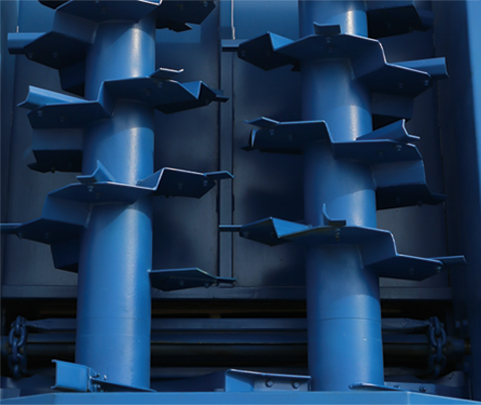

Rotating shaft: the grinding wheel equipped with the rotating shaft  is in the shape of a ladder, so that the grinding is more better. Built-inside reducer with overload protection function, can reduce the transmission damage.

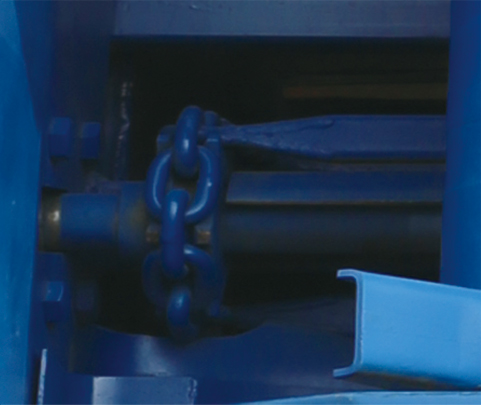

Hydraulic system:hydraulic motor power with m more power, transmits chain push can make it more stable, faster, durable, low failure rate.

Sluice board:there is a sluice board at the top of the rear end , which can effectively control the amount of fertilizer spreading

Guardrail:guardrail board can be added on both sides of the car body to expand capacity of the car body and increase the load to more than 15%.

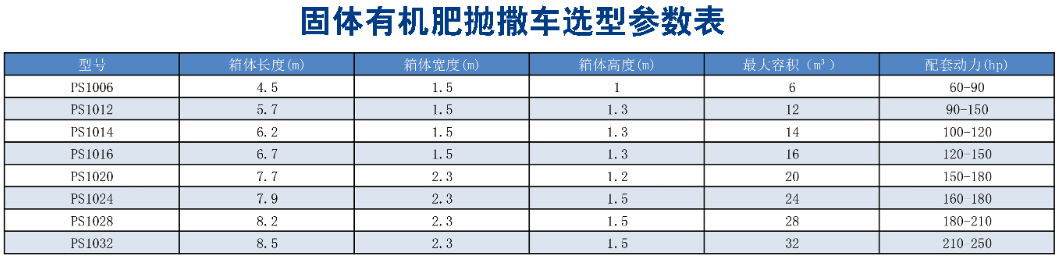

PS

1006

L*B*H(mm)

NET WEIGHT(kg)

MAX CAPACITY(m3) CONBINED POWER(hp) SPREADING WIDTH(m) WORKING EFFICIENCY(m3/h)
6670*2240*1840 1900 6 60-90 4-7 24-36
SPEED(km/h) 3km/h 5km/h 10km/h 15km/h 20km/h
SPREADING AREA(畝/車) 3.75-5.65 6.25-9.35 12.5-18.75 18.75-28.15 25-37.5


PS

1012

L*B*H(mm NET WEIGHT(kg) MAX CAPACITY(m3 CONBINED POWER(hp) SPREADING WIDTH(m) WORKING EFFICIENCY(m3/h
7998*2800*2500 2800 12 90-150 5-8 36-65
SPEED(km/h 3km/h 5km/h 10km/h 15km/h 20km/h
SPREADING AREA(畝/車 4.5-9 7.5-15 15-30 22.5-45 30-60



PS

1020

L*B*H(mm NET WEIGHT(kg) MAX CAPACITY(m3 CONBINED POWER(hp) SPREADING WIDTH(m) WORKING EFFICIENCY(m3/h
11500*2600*3300 4200 20 150-180 6-9 60-80
SPEED(km/h 3km/h 5km/h 10km/h 15km/h 20km/h
SPREADING AREA(畝/車 7.9-9 13.1-17.5 26.2-35 39.4-52.5 52.5-70

PS

1028

L*B*H(mm NET WEIGHT(kg) MAX CAPACITY(m3 CONBINED POWER(hp) SPREADING WIDTH(m) WORKING EFFICIENCY(m3/h
11000*2600*3300 4800 28 180-210 7-10 65-84
SPEED(km/h 3km/h 5km/h 10km/h 15km/h 20km/h
SPREADING AREA(畝/車 12-15 20-25 40-50 60-75 80-100
